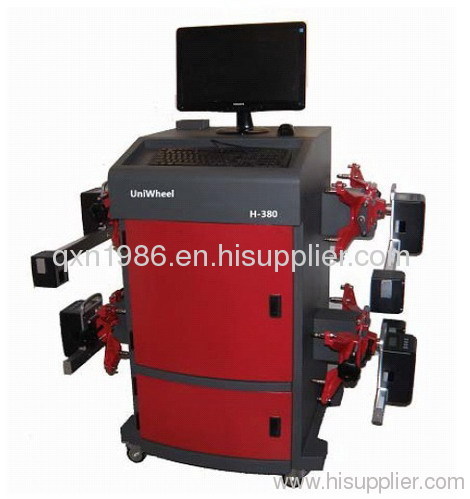

H380 CCD wheel aligner,CCD wheel alignment,wheel alignment

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: H380

Production Capacity: 5000

Delivery Date: 3 day

Means of Transport: Ocean

Packing: wooden

Brand Name: uniwheel

H380 CCD wheel alignment,we can do OEM/ODM service all over the world with high quality and competitive price.

H-380 wheel alignment

Voice navigation

19 inch LCD screen

sensor configuration

PC-Free Measurement Mode

remote control

LCD digital display of battery capability,electronic horizeon, angle measurement

LED electronic horizon reminding

LED toe camber adjusting reminding

8 beam Anti-distrubance full loop measurement

Sensor self-testing, individual changeable without calibration

Availabel Wheel align parameter measurement

Front wheel Toe, Camber, Kingpin caster, Kingpin SAI,

hrust Angle, maxumim turn angle

Wheelbase,track,setback,offset

special measurement program

Any hang lift measurement

Altimetry,counterweight

VAG toe constant value measurement

Intelligent measurement ultra-low chassis and refitted vehicles

conventional function

Switch measurement interface by one key

Calibrate parameters unit exchange

Animatiion Suspension adjustment guidance

User database

Eccentricity Compensation

Front wheel align measurement

Animation operation guidance

special function

fast measurement

Self-test function when the calibration value is incorrect.

the lift horizontal compensation

sensor working log

Voice Reminding system

video guide radar system

standard package

Package	Quantity	Function
Wireless LCD digital display Sensor	4	PC free measurement/wireless/CCD/digital display of battery capability/electronic horizon/digital display toe and camber/LED indicator for adjustment
H-380 Mobile cabinet	1	Casters/locking device
Four-point centering wheel clip	4	Four-point centering/suitable for 11"-21" rim
Computer	1
19Inch LCD screen	1
Ink-jet printer	1
Mechanical turntable	2
Steering wheel fixed bracket	1
Braking fixed bracket	1
User manual	1

Tech parameter

measurement parementer	Measurement value	ToleranceValue	Temperature
front wheel toe	±5°	±2′	–10°~45°
rear wheel toe	±5°	±2′	–10°~45°
total toe	±10°	±4′	–10°~45°
front wheel camber	±10°	±2′	–10°~45°
rear wheel camber	±10°	±2′	–10°~45°
kingpin caster	±20°	±4′	–10°~45°
kingpin SAI	±20°	±4′	–10°~45°
thrust angle	±5°	±3′	–10°~45°
included angle	±20°	±4′	–10°~45°
setback	±5°	±2′	–10°~45
